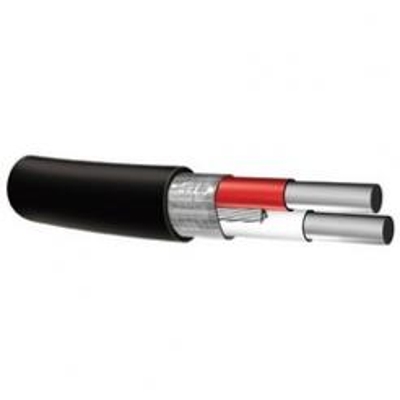

20 AWG 12 Pair Type JX Overall Shield Solid Thermocouple Wire, PLTC, PVC Jacket

SKU
JXTSOL2012PS-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

20 AWG 12 Pair Type JX Overall Shield Solid Thermocouple Wire, PLTC, PVC Jacket

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 2000'. Please call for longer put ups.

Applications:
Used to economically extend the thermocouple signal in aluminum and steel plants, pulp and paper, glass, automotive, petrochemical, heat treating and food processing industries.

Conductor:
Solid conductor

Insulation:
105°C flame-retardant Polyvinyl Chloride (PVC), average thickness is 15 mils

Jacket:
Flame-retardant Polyvinyl Chloride (PVC), color coded per ISA/ANSI MC96.1

Assembly:
Twisted pairs, with one conductor in each group number identified, the cable core has an overall aluminum/Mylar shield with a tinned copper drain wire

Color Code:
Per ISA/ANSI MC96.1 latest revision

Standards:
Meets the requirements of UL 13 and passes the IEEE 1202 flame test

Thermcouple Type:
Iron/Constantan Type JX

Specifications*:

Size: 20 AWG
Number of Pairs: 12 (24 Conductors)
Outside Diameter: 0.653 inches
Temperature: 105°C
Voltage: 300V



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size20 AWG
# of Conductors24 Conductors
# of Pairs12 Pair
O.D. (Inches)0.653
Shield TypeOverall Foil Shield
