(2) Cat 5E + (2) RG6 Quad + (2) Fiber Composite Cable

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

(2) Cat 5E + (2) RG6 Quad + (2) Fiber Composite Cable, 500ft Spool


Product Details

Learn everything you want to know about this product to make an informed purchase

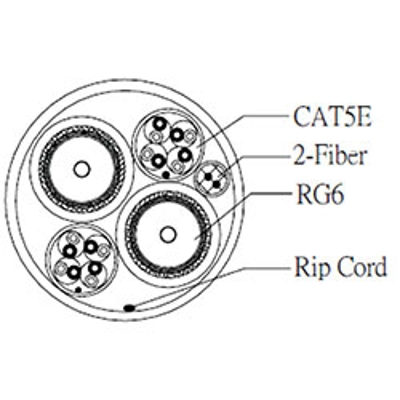

(2) Cat 5E + (2) RG6 Quad + (2) Fiber Composite Cable

Applicable Standards:
- Multi-media Cables for Smart Home
- Reference Standard: SCTE IPS_SP_001, TIA-568-C.2


Two 4 Pair Cat5E UTP Cable
- Complies to TIA 568-C.2
- 24 AWG Bare Copper Conductor / PE Insulation

Two RG6 Quad Shield Coaxial Cable
- Complies to SCTE ISP-IP-001
- 18 AWG Copper Clad Steel (CCS)
- Al foil / 60% Al-Mg Alloy Braid Shield +
- Al foil / 40% Al-Mg Alloy Braid Shield

One 2-Fiber Interconnect Cable
- FDDI-Grade Fiber 62.5/125 UM

Color: Yellow

View Spec Sheet for Complete Details (PDF)

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size30 AWG
