$4.31 /ft.
In Stock

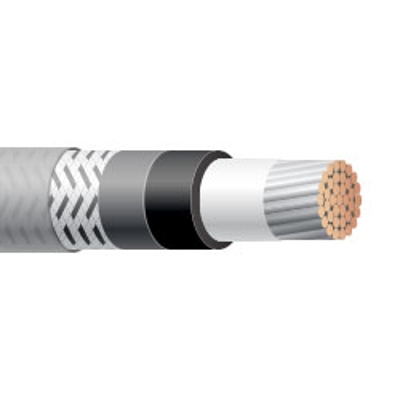

TelcoFlex® IV Central Office Power Wire and Cable Class I Flexible Strand With Braid
Product Details
Learn everything you want to know about this product to make an informed purchase<p><strong>Cut to length - sold by the foot. Enter the desired footage in the QTY box. </strong><br /> Minimum 1' to maximum 1000'. Please call for different colors or longer put ups.</p> <p><strong>Applications:</strong><br /> TelcoFlex® IV Central Office Power Wire and Cable Class I Flexible Strand With Braid. The Cable has low-smoke, lead-free and silicone-free non-halogenated insulation. UL Central Office Power Cable 105ºC dry, 60ºC wet. UL Listed RHH/LS FT4 and VW-1, 90ºC dry, 60ºC wet, 600 volts. Sizes 1/0 and larger are UL, CT USE rated. CSA AWM I B 105ºC, 600 volts.</p> <p><strong>Specifications:</strong><br /> Meets or exceeds the following:<br /> UL Listed RHH/LS<br /> FT-4 Flame Test<br /> VW-1<br /> ASTM B-33<br /> Physical and Electrical tests in accordance with UL Standard 44 Requirements<br /> CSA AWM I B 105ºC<br /> IEC 60674 and 60332<br /> RoHS / Reach Compliant</p> <p><strong>Construction:</strong><br /> Southwire's TelcoFlex® IV cable is single conductor with a class l(modified) bunched (8 and 6 AWG) and rope-bunched (4 AWG and larger) stranded tinned copper conforming to ASTM B-33 and Underwriters' laboratories requirements. An opaque mylar tape shall be applied over the conductor to facilitate stripping. Insulation is 90ºC rated limited smoke, non-halogen, TelcoHyde™ 5221 conforming to Underwriters' Laboratories standard 44 and Telcordia Specification GR-347-CORE, also UL and CSA 105ºC AWM rated. The insulation has a limiting oxygen index of 35%.</p> <p><strong>Specifications*:</strong></p> <p class="specs"><b>Size:</b> 2 AWG<br /> <b>Conductor Strand:</b> 168/.0201<br /> <b>Insulation Thickness:</b> 0.060 inches<br /> <b>Outside Diameter:</b> 0.470 inches<br /> <b>Weight:</b> 0.284 lbs per ft<br /> <b>Max. D.C. Res. @ 20ºC:</b> .1720</p> <p>*Data provided on this page is subject to change based on different manufacturers variances.</p>
Wire Size | 2 AWG |
---|---|
# of Conductors | 1 Conductor |
O.D. (Inches) | 0.47 |
