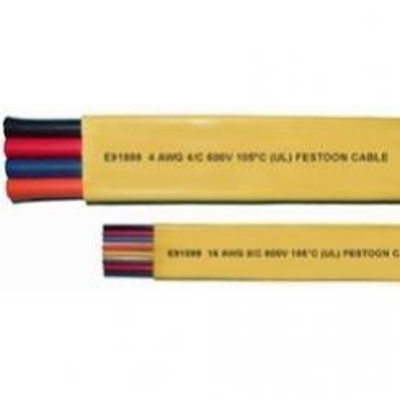

2/4 Yellow Flat Festoon Cable (PVC)

SKU FFC2s4

$

24.030000

24.030000

/ft
How will you purchase this wire?
24.030000 24.030000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

2/4 Yellow Flat Festoon Cable (PVC)

Color Length (ft.) Price
Yellow

Length (ft.)

$24.03
add Add a length
Grouped product items
Color Length (ft.)
Yellow Length 500 ft.
$12,015.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Jacket Color

    Yellow

  • Cable Type

    Flat Festoon Cable

  • Wire Size

    2 AWG

  • # of Conductors

    4 Conductors

  • Conductor Material

    Bare Copper

  • O.D. (Inches)

    0.575 x 1.975 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1 ft. to maximum 1000 ft. Please call for longer put ups.

Color:
Yellow

Applications:
Flat Festoon Cable (PVC) is designed for coninuous flexing applications including festooning systems, cranes, hoists, track systems, conveyors & robots.

Features:
Oil and chemical resistant.  UV resistant. High flexibility. Small bending radius.  UL Listed and CSA Certified for indoor and outdoor use. -40°C-105°C

Standards:
UL VW-1
UL/CSA Certified

Jacket Material:
PVC - Polyvinyl Chrloride

Conductor Material:
Bare Copper

Specifications*:

Size: 2 AWG
Number of Conductors: 4
Conductor Strand: 665
Insulation Thickness: 0.045 inches
Outside Diameter: 0.575 x 1.975 inches
Weight: 1.278 lbs per ft
Voltage: 600V



*Data provided on this page is subject to change based on different manufacturers variances.
