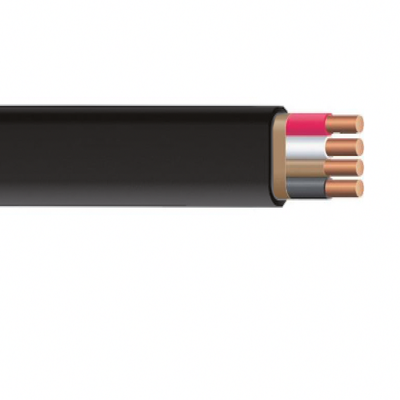

2 AWG 3 Conductor, NM-B Wire with ground, Black

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
125 ft. Spool
500 ft Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

2-3 W/G NM-B Wire Black, 125ft, 500ft, or 1000ft Coil

SKU
NMB23

Product Details

Learn everything you want to know about this product to make an informed purchase

Applications:
Non-metallic sheathed NM-B cable is used in normally dry installations in residential wiring, as branch circuits for outlets, lighting and other residential loads. Its applications are outlined in NEC 2008 and NEC 2011 Article 334. NM-B is rated at 600 volts and although it is rated at a conductor temperature of 90°C dry , its ampacity is limited to 60°C according to the NEC 2008 and NEC 2011. It may be fished through masonry or tile walls, where not exposed or subject to excessive moisture or dampness. NM-B cables are LEAD FREE and RoHS compliant. Equivalent to Romex NM-B.

Standards:
Meets or exceeds all applicable ASTM specifications
UL 83: Thermoplastic Insulated Wires and Cables
UL 719: Non-Metallic Cables
Federal Specification A-A-59544 and requirements of the NEC.
Voltage rating - 600 volts.

Construction:
Conductors:
Solid 14 to 10 AWG annealed soft bare copper per ASTM B3.
Stranded 8 AWG and larger annealed soft bare copper per ASTM B3 and B8.
Insulation:
Color coded polyvinyl chloride (PVC) compound with a nylon covering meeting the required thickness of Type THHN. Conductor insulation is rated 90°C.
Ground:
Soft, bare copper solid per ASTM B3 and stranded per ASTM B3 and B8
Sheath:
30 mil color coded PVC sheath rated 90C is applied over the completed assembly

Specifications*:

Size: 2 AWG
Number of Conductors: 3
Ground Wire Size: 8 AWG
Nominal Cable Dimensions: 0.1195mils
Weight per foot: 0.823 lbs
Allowable Ampacity: 95 Amps @ 30°C PER NEC

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeNM-B
Wire Size2 AWG
# of Conductors3 Conductors w/ Ground
Conductor MaterialBare Copper
Ampacity 95
Jacket ColorBlack
Direct BurialNo
