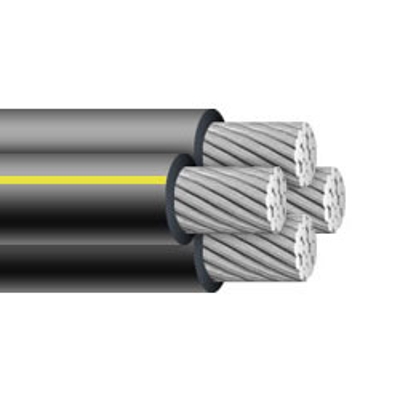

2-2-2-4 Dyke Aluminum Quadruplex URD Direct Burial Cable

SKU USDQ234

$

3.170000

3.170000

/ft
How will you purchase this wire?
3.170000 3.170000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

2-2-2-4 Dyke Aluminum Quadruplex URD Direct Burial Cable

Color Length (ft.) Price
Black

Length (ft.)

$3.17
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$1,585.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    2 AWG

  • # of Conductors

    4 Conductors

  • Conductor Material

    Aluminum

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    0.938

  • Ampacity

    153

  • Voltage

    600V

  • Insulation Material

    XLPE - Cross-linked Polyethylene

  • Direct Burial

    Yes

  • Sunlight Resistant

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

2-2-2-4 Underground Secondary Distribution Cable

Color:
Black.

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. They are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
- UL 854: Service Entrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

2-2-2-4 Quadruplex URD Cable Specifications*:

Phase Conductor-Size: 2 AWG
Conductor Strand: 7
Neutral Conductor-Size: 4 AWG
Conductor Strand: 7
Insulation Thickness: 0.060 inches
Outside Diameter: .938 inches
Allowable Ampacity-Direct Burial: 153 Amps
Allowable Ampacity-In Duct: 115 Amps
Weight: 0.367 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
