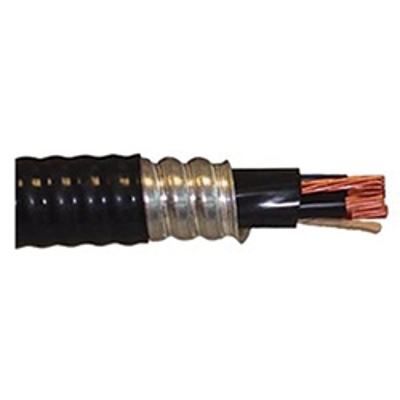

2/0-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 1kV

Min: 50 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

2/0-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 1kV

SKU
TEK2s04C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

2/0-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 1kV
XLP insulation
Inner and outer PVC jackets


Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 100'. Please call for longer put ups.

Color:
Black

Applications:
For exposed or concealed wiring in wet or dry locations. For use in ventilated, non-ventilated and ladder type cable troughs and ventilated flexible cableway in wet or dry locations. For direct earth burial. Typical applications are for power, lighting and control circuits in: pulp and paper mills, steel mills, food processing plants, commercial centers, mines, generating stations, refineries, industrial plants and chemical plants.

Conductor:
Class B stranded, bare, soft copper

Insulation:
Cross-linked Polyethylene (XLPE)

Inner Jacket:
Black, lead-free, flame retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC)

Outer Jacket:
Black, lead-free, flame retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC)

Grounding Conductor:
One uninsulated stranded bare copper conductor

Assembly:
Multiple conductor cables are assembled with suitable fillers and binder tape

Armor:
Aluminum interlocked armor

Ampacity:
Based on 90°C column of Table 2 of the 2009 Canadian Electric Code, allowable ampacities for not more than three copper conductors in raceway or cable based on 30°C ambient temperature.

Standards:
 The cable is certified to CSA C22.2 No. 131 Teck 90 cable and No. 174 for use in CSA Class 1, Division 1 hazardous locations (CSA HL rated) and passes the FT4 vertical tray flame test

Temperature:
 -40°C to 90°C

Voltage:
 1kV

Specifications*:

Size: 2/0
Number of Conductors: 4
Ground Wire Size: 6 AWG
Approx Diameter Inner Jacket: 0.58 inches
Approx Armor Diameter: 1.79 inches
Approx Diameter Outer Jacket: 1.91 inches
Net Weight: 2.745 lbs per ft
Amps Per Conductor: 195



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size2/0
# of Conductors4 Conductors w/ Ground
O.D. (Inches)1.92
