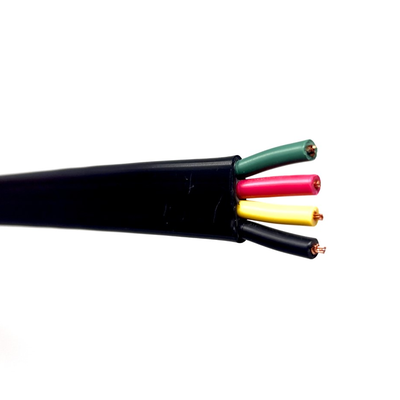

2/0 3C w/ Grnd Heavy-Duty Flat Jacketed Submersible Pump Cable

SKU HDSP2/03CWG
How will you purchase this wire?
0.015010 0.015010
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

2/0 3C w/ Grnd Heavy-Duty Flat Jacketed Submersible Pump Cable

Grouped product items
Color Length (ft.)
Black Length 1000 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Jacket Color

    Black

  • Wire Size

    2/0 AWG

  • # of Conductors

    3 Conductors w/ Ground

  • Conductor Material

    Bare Copper

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

2/0 3C w/ Grnd Heavy-Duty Flat Jacketed Submersible Pump Cable

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'.

Applications:
For wiring within the casing of deep well submersible water pumps. Used in residential, farm and industrial water well applications.

Features:
Resistant to acid, abrasion, alkalis, flame, gas, and oil
Water resistant
Operating temperature range -40° C to 75° C
Sequential footage marking

Standard:
UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable.

Construction:

Conductors:
Annealed bare stranded copper conductors

Insulation:
Polyvinyl Chloride (PVC)

Jacket:
Black PVC Jacket

Specifications*:

Size: 2/0 AWG
Number of Conductors: 3
Stranding: 19
Ground Wire Size: 6 AWG
PVC Insulation Thickness: 0.080 inches
Jacket Thickness: 0.060 inches
Nominal Cable Dimensions: 0.720 x 2.191 inches
Weight per foot: 2.020 lbs

*Data provided on this page is subject to change based on different manufacturers variances.
