2/0,2/0 & #1 Converse Underground Secondary Distribution Cable. Sold by the foot.

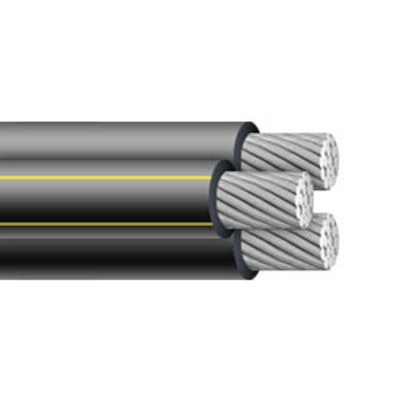

2/0,2/0 & #1 Converse Triplex Underground Secondary Distribution Cable
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. THey are used in various underground applications in secondary distribution circuits.
Compressed Class B compressed stranded, 1350 series aluminum alloy.
Black cross-linked polyethylene (XLPE)
Phase conductors and neutral conductors are cabled together to form a twisted assembly.
- UL 854: Service ENtrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables
Phase Conductor Size: 2/0
Phase Conductor Insulation Thickness: 0.080 inches
Neutral Conductor Size: 1 AWG
Neutral Conductor Insulation Thickness: 0.080 inches
Outside Diameter: 1.17 inches
AC Resistance @ 75°C: 0.159
AC Resistance @ 90°C: 0.167
Inductive Resistance @ 60 Hz: 0.0280
Allowable Ampacity-Direct Burial: 233 Amps 90°C
Allowable Ampacity-In-Duct: 180 Amps at 90°C
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||2/0 AWG|
|# of Conductors||3 Conductors|
|Stranded or Solid||Stranded|
|Insulation Material||XLPE - Cross-linked Polyethylene|
