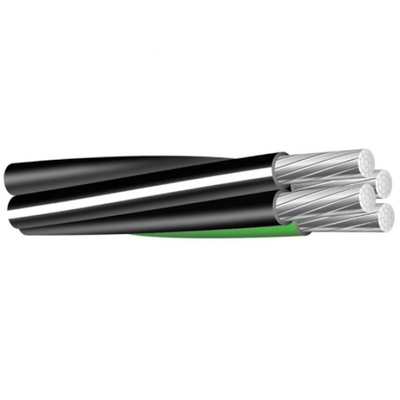

2/0-2/0-1-4 Aluminum Mobile Home Feeder Cable. Sold by the foot.
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Description:
Aluminum Mobile Home Feeder cable is designed for mobile homes as a service entrance cable. The cable is sunlight resistant and is approved for use in accordance with the recommendations of the National Electric Code in raceways and underground installations. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts.
Conductor:
Aluminum Mobile Home Feeder cable has a compact strand soft drawn 8000 series aluminum conductor, per ASTM B-800 & B-801.
Insulation:
Aluminum Mobile Home Feeder cable has a type USE2/RHH/RHW-2 cross linked polyethylene (XLP) insulation. The conductors are cabled together with a green XLP insulted aluminum ground. The grounded (neutral) conductor is identified by a longitudinal white stripe.
Applicable Standards:
Ampacities based on National Electric Code, 2005n edition, section 310-15
UL 44 for types RHH & RHW-2
UL 854 for type USE-2
Specifications*:
Conductor Size: 2/0
Cable Construction: 2/0-2/0-1-4
Neutral Conductor Size: 1 Gauge
Grounding Conductor Size: 4 Gauge
Voltage: 600V
Allowable Ampacity: 150 Amps
Cable OD: 1.301 inches
Weight: 0.548 lbs per ft
* Ampacities based on CEC Part 1, Table 4 for not more than three conductors in raceway. For underground installations, refer to CEC, Rule 4- 004 for Ampacity rating.
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Cable Type | Mobile Home Feeder |
Type of Structure | Residential |
Wire Size | 2/0 AWG |
# of Conductors | 4 Conductors |
Conductor Material | Aluminum |
Stranded or Solid | Stranded |
O.D. (Inches) | 1.301 |
Ampacity | 150 |
Voltage | 600V |
Temp. Rating | 90°C |
Insulation Material | XLPE - Cross-linked Polyethylene |
Jacket Color | Black |
Direct Burial | Yes |
Sunlight Resistant | Yes |
Standards | UL Listed |
