18 Gauge 4 Conductor Bonded Parallel Wire
Product Details
Learn everything you want to know about this product to make an informed purchase***SHIPS WITHIN 2-3 BUSINESS DAYS***

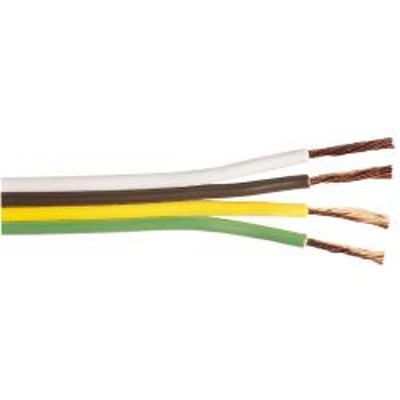

18 Gauge 4 Conductor Bonded Parallel Wire, Sold in Spools
Applications:
Multiple primary wires parallel bonded with color-coding for identification purposes. Especially ideal for use in RVs, marine, and utility trailer applications. Built to stay together under the toughest operating conditions yet easy to separate at the end of a run for final terminal connection. All-copper stranded core is highly conductive maximizing current transfer while remaining flexible for easy installation. Customized printing is available to best meet individual needs.
Standards: SAE J1128, SAE J378
Color Code:
4 Conductors: White/Brown/Yellow/Green
Specifications*:
Size: 18 Gauge
Conductors: 4
Number of Strands: 16/30
Voltage: 60 Volts or Less
Temp: : Rated –30°C (–22°F) to 80°C (176°F)
Outside Diameter: 0.095 x 0.380 inches
Length: 100 ft.
Weight: 5 lbs.
*Data provided on this page is subject to change based on different manufacturers variances.
| Wire Size | 18 AWG |
|---|---|
| # of Conductors | 4 Conductors |
| O.D. (Inches) | 0.095 x 0.380 in. |
