In Stock

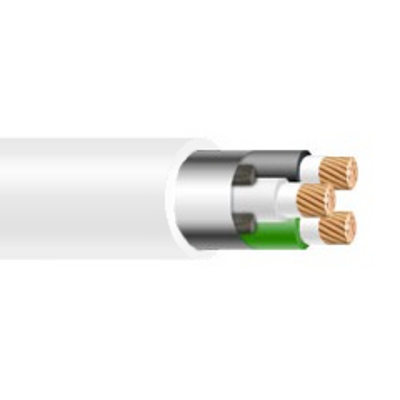

18/5 SJTOW White Portable Cord 300V UL/CSA
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 15' to maximum 3500'. Please call for longer put ups.
Color:
White
Applications:
18/5 SJTOW Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.
Jacket:
Polyvinylchloride (PVC), White jacket . Temperature range: -40ºC to +60ºC or +105ºC. Voltage rating: 300 Volts. (**Please specify temperature rating in shipping instructions.)
Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone
Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)
Construction:
Conductors:
18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.
Specifications*:
Size: 18 AWG
Number of Conductors: 5
Conductor Strand: 16/30
Insulation Thickness: 0.762 mm / 0.030 inches
Outside Diameter: 9.271 mm / 0.365 inches
Weight: 0.088 lbs per ft
Current Amps: 5.6 (Green conductor for grounding only)
Color Code:
5 Conductors: Black, White, Green, Red, Orange
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 18 AWG |
# of Conductors | 5 Conductors |
Conductor Material | Bare Copper |
O.D. (Inches) | 0.365 |
Ampacity | 5.6 |
Jacket Color | White |
