Thermostat Wire, 250ft Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

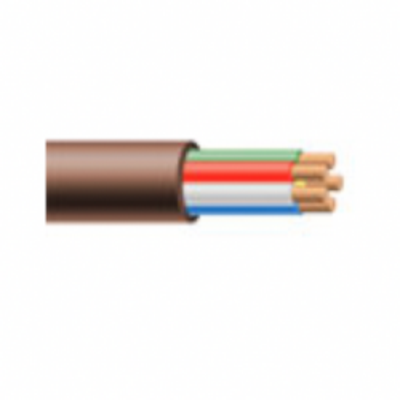

18/12C Thermostat Wire, 250ft Spool

SKU
THM18s12C

Product Details

Learn everything you want to know about this product to make an informed purchase

Thermostat Wire, 60°C, 150 Volt, UL 13, Type CL2

Applications:
PVC Thermostat Cable is primarily used for power limited circuits such as thermostats, air conditioning, heat pumps, bell and alarm systems, signals systems, door bells and remote control units where the voltage does not exceed 30 volts.

Standards:
- UL 13, Type CL2
- NEC Article 725

Conductors:
Solid soft drawn copper per ASTM B-3

Color Code:
12 Conductors  Red, White, Green, Blue, Yellow, Tan, Orange, Black, Pink, Brown, Gray, Purple

Insulation:
Premium-grade, heat and moisture resistant color-coded PVC

Jacket:
Polyvinylchloride (PVC), which is heat, moisture and sunlight resistant.
Temperature rating is -20°C to +60°C

Specifications*:

Size: 18 AWG
Number of Conductors: 12
Conductor Strand: Solid
Insulation Thickness: 0.006 inches
Outside Diameter: 0.245 inches
Weight per foot: 0.074 lbs

*Data provided on this page is subject to change based on different manufacturers variances.



More Information
Wire Size18 AWG
# of Conductors12 Conductors
Conductor MaterialBare Copper
O.D. (Inches)0.245
