In Stock
500ft or 1000ft Spool
Product Details

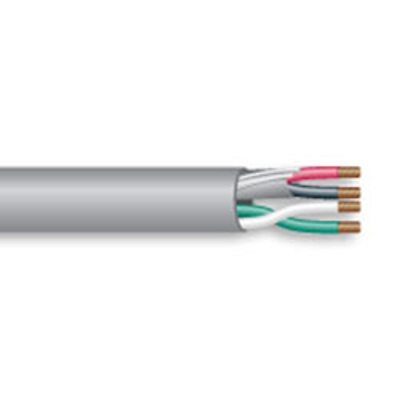

Learn everything you want to know about this product to make an informed purchaseMulti-Conductor, Shielded, Riser Security Cable, CMR Cable
Color:
Gray
Applications:
Access control, Video Surveillance/CCTV, Intercom, Security, Home Theater and Burglar Alarms.
Compliances:
- CL3R Cable: NEC Article 725 Type CL3R Cable (UL: 75°C, 150V)
- CMR Cable: NEC Article 800 Type CMR Cable (UL: 75°C, 300V)
Conductor:
Stranded, bare copper to ASTM B3, B8, and B286
Conductor Color-Code:
Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan
Insulation:
Premium-grade, color-coded S-R-PVC
Jacket:
Gray Premium-grade Polyvinyl Chloride (PVC)
-20°C to +75°C Includes ripcord
Specifications*:
Size: 18 AWG
Number of Conductors: 12
Conductor Stranding: 7/26
Nominal Jacket Thickness: 0.010 inches
Outside Diameter: 0.295 inches
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 18 AWG |
# of Conductors | 12 Conductors |
O.D. (Inches) | 0.295 |
