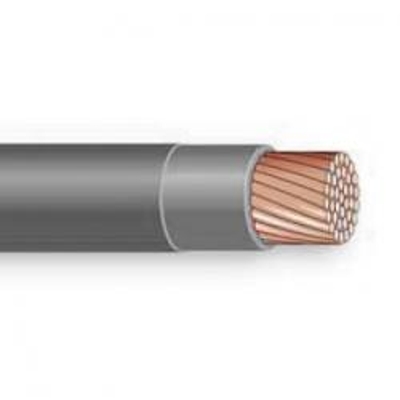

16 Gauge Marine Wire, Tinned Copper, UL 1426

SKU
MGBC16

Product Details

Learn everything you want to know about this product to make an informed purchase

***SHIPS WITHIN 2-3 BUSINESS DAYS***

Marine Grade, 16 Gauge Marine Wire (Boat Cable) Tinned Copper Stranding, UL 1426.  500ft Spool

Applications:
UL Listed, single-conductor tinned wire ideal for use in the high corrosive environment of marine applications. Special electro-tinned, copper strands also increase protection against corrosion for recreational vehicles, automotive, trucks, and trailers. Tinned copper stranding is extremely flexible for easy routing through marine applications and easier to solder than bare copper. Flame retardant, PVC insulation is highly resistant to water, oil, grease, gasoline, and other damaging solvents. High voltage tolerance of up to 600 volts adds to versatility to its use in multiple marine and other suitable applications.

Standards Meets DOT and Coast Guard specs for electrical systems

Specifications*:

Size: 16 Gauge
Number of Strands: 12/30
Voltage: 600Volts
Temp: Rated at 105°C (221°F) dry and 75°C (167°F) wet
Jacket Material: Polyvinylchloride (PVC)
Outside Diameter: 0.122 inches
Weight: 0.016 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size16 AWG
# of Conductors1 Conductor
O.D. (Inches)0.122
