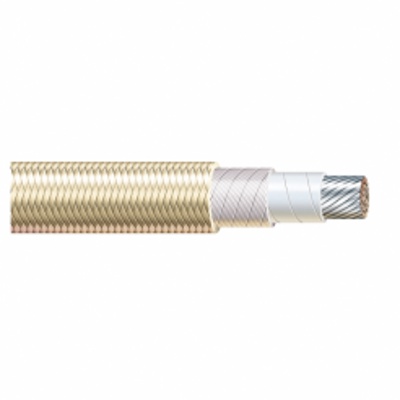

16 AWG TGGT Wire, High Temperature Wire, 250°C, UL 5256/5196

Min: 100 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

16 AWG TGGT Wire, High Temperature Wire, 250C

SKU
TGGT16-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put-ups.

Application:
Type TGGT is commonly used as internal wiring for commercial, industrial, and household ovens, cooking, and drying equipment.TGGT wire is suited for severe hot spot locations in industrial processing.  TGGT may be used in both wet and dry applications.

Features:
- Superior resistance to high temperature, abrasion, chemicals, and moisture
- Critical high temperature performance
- Designed for flexing applications

 Applicable Standards:

- Meets the UL requirements for AWM Style 5256/5196, also meets the requirements for CSA Type C3

Conductor:
 TGGT features single, stranded, nickel-coated copper conductor.

Insulation:
PTFE Tape/Fiberglass Serving/Fiberglass Braid treated with High-Temp Saturant

Jacket:
Braided-glass yarn impregnated with an abrasion-resistant finish

Specifications*:

Size: 16 AWG
Number of Strands: 26
Insulation Thickness: 0.013 inches
Braid Thickness: 0.007 inches
Outside Diameter: 0.107 inches
Weight: 0.014 lbs per ft
Ampacity: 26 Amps @
Voltage: 600 Volts
Max Temp: 250°C

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size16 AWG
# of Conductors1 Conductor
Conductor MaterialNickel Plated Copper
Stranded or SolidStranded
Number of Strands26
O.D. (Inches)0.107
Ampacity26
Voltage600V
Insulation MaterialPTFE
Jacket MaterialFiber Glass Braid
UL StyleStyle 5256
