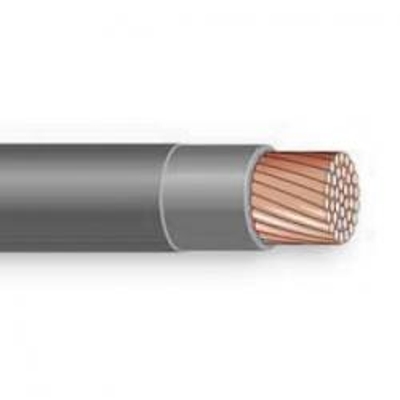

16 AWG GXL Automotive Primary Wire

SKU GXL16

$

0.130000

0.130000

/ft
How will you purchase this wire?
0.130000 0.130000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

.... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... ....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

16 AWG GXL Automotive Primary Wire

Grouped product items
Color Length (ft.)
Black Length 500 ft.
$65.00
White Length 500 ft.
$65.00
Red Length 500 ft.
$65.00
Orange Length 500 ft.
$65.00
Yellow Length 500 ft.
$65.00
Tan Length 500 ft.
$65.00
Violet Length 500 ft.
$65.00
Gray Length 500 ft.
$65.00
Brown Length 500 ft.
$65.00
Dark Green w/ Black Stripe Length 1000 ft.
$145.00
Dark Green Length 500 ft.
$65.00
Black Length 1000 ft.
$130.00
White Length 1000 ft.
$130.00
Red Length 1000 ft.
$130.00
Orange Length 1000 ft.
$130.00
Yellow Length 1000 ft.
$130.00
Tan Length 1000 ft.
$130.00
Violet Length 1000 ft.
$130.00
Gray Length 1000 ft.
$130.00
Brown Length 1000 ft.
$130.00
Black w/ Pink Stripe Length 1000 ft.
$142.00
Black w/ Red Stripe Length 1000 ft.
$142.00
Black w/ Tan Stripe Length 1000 ft.
$142.00
White w/ Light Green Stripe Length 1000 ft.
$142.00
Pink w/ Black Stripe Length 1000 ft.
$142.00
Pink w/ Orange Stripe Length 1000 ft.
$142.00
Light Blue w/ Black Stripe Length 1000 ft.
$142.00
White w/ Yellow Stripe Length 1000 ft.
$142.00
White w/ Green Stripe Length 1000 ft.
$142.00
White w/ Purple Stripe Length 1000 ft.
$142.00
White w/ Brown Stripe Length 1000 ft.
$142.00
Dark Green w/ White Stripe Length 1000 ft.
$142.00
Dark Blue w/ Black Stripe Length 1000 ft.
$142.00
Tan w/ Dark Blue Stripe Length 1000 ft.
$142.00
White w/ Red Stripe Length 1000 ft.
$142.00
White w/ Orange Stripe Length 1000 ft.
$142.00
White w/ Gray Stripe Length 1000 ft.
$142.00
Dark Green Length 1000 ft.
$130.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    16 AWG

  • # of Conductors

    1 Conductor

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Stranded

  • Number of Strands

    19

  • O.D. (Inches)

    0.118

  • Temp. Rating

    -40°C ~ 125°C

  • Insulation Material

    XLPE - Cross-linked Polyethylene

  • Standards

    SAE J1128

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

***STRIPED COLORS ARE NON-STOCK ITEMS & MAY TAKE 4-5 WEEKS TO SHIP***

16 AWG GXL Automotive Primary Wire, 50V, 500ft or 1000ft Spool.

Applications:
Type GXL (special purpose cross-linked) XLPE automotive primary wire is for use in engine compartments where higher heat resistance is required according to SAE J1128.

Specifications*:

Size: 16 AWG
Number of Strands: 19/29
Insulation: Cross-Linked Polyethylene
Temp: -40°C to 125°C
Voltage Rating: 50V
Insulation Thickness: 0.030 inches
Outside Diameter: 0.118 inches
Ford Spec: M1L-85B
Chrysler Spec: MS-8900
SAE Spec: SAE J1128

*Data provided on this page is subject to change based on different manufacturers variances.
