Belden 8618 equals General C2537A, NEC Type CM (UL) c(UL) CMH

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

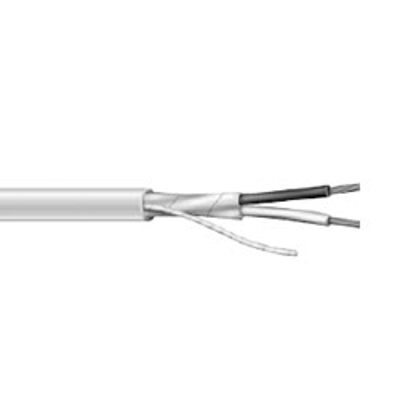

16 AWG, 3 Conductor, Communication Cable, Foil Shield, 500ft or 1000ft Spool

SKU
COMC2537A

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 8618 equals General C2537A, NEC Type CM (UL) c(UL) CMH

A Cost-Effective Alternative to Belden
General Cable C2537AIf you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Recording studios and sound stages, Broadcast and sound systems, Computers, Industrial equipment control, Suggested voltage rating: 600 volts

Compliances:
- UL Style 2107 (UL: 60°C, 300V)
- NEC Article 800 Type CM (UL: 75°C)
- CSA CMG (CSA 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMG Flame Test

Conductor:
Fully annealed, stranded tinned copper per ASTM B-33

Color Code:
1. Black
2. Red
3. Neutral

Insulation:
Premium-grade, color-coded polyethylene

Shield:
- 100% aluminum/polyester, 25% overlap, foil facing out
- Stranded tinned copper drain wire

Jacket:
PVC, gray
-20°C to +80°C

Specifications*:

Size: 16 AWG
Number of Conductors: 3
Conductor Stranding: 19/.0117
Nominal Insulation Thickness: 0.031 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.325 inches
Nomonal Cap. pF/ft: A-19.0, B-34.0

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size16 AWG
# of Conductors3 Conductors
O.D. (Inches)0.325 in.
Alt to Belden #8618
ShieldedYes
Shield TypeOverall Foil Shield
