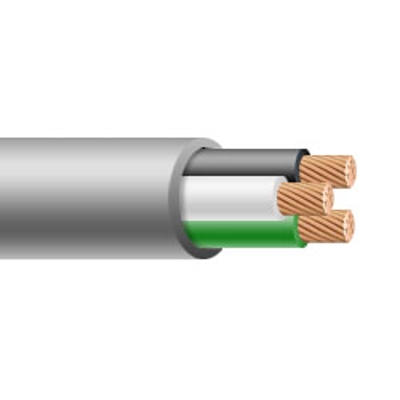

16/4 SJTO Portable Cord 300v UL/CSA
/ft.
/ft.
Product Details
Learn everything you want to know about this product to make an informed purchaseColor:
Yellow or Gray
Applications:
SJTO Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.
Jacket:
Polyvinylchloride (PVC), Gray or Yellow. Temperature range: -20ºC to +60ºC. Voltage rating: 300 Volts.
Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone
Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)
Construction:
Conductors:
18 through 6 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.
Specifications*:
Size: 16 AWG
Number of Conductors: 4
Conductor Strand: 26/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 9.27 mm / 0.365 inches
Weight: 0.094 lbs per ft
Current Amps: 10 (Green conductor for grounding only)
Color Code:
4 Conductors: Black, White, Red, Green
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Jacket Color | Yellow |
| Wire Size | 16 AWG |
| # of Conductors | 4 Conductors |
| Conductor Material | Bare Copper |
| O.D. (Inches) | 0.365 |
| Ampacity | 10 |
