SJTOW White Flexible Portable Cord. Cut to length - sold by the Foot.

Min: 40 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

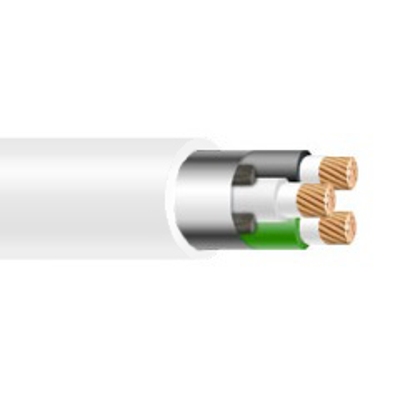

16/3 SJTOW White Portable Cord 300V UL/CSA

SKU
SJT16s3W-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 4000'. Please call for longer put ups.

Color:
White

Applications:
16/3 SJTOW Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.

Jacket:
Polyvinylchloride (PVC), White Jacket. Temperature range: -40ºC to +60ºC or +105ºC. Voltage rating: 300 Volts. (**Please specify temperature rating in shipping instructions.)

Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone

Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)

Construction:
Conductors:
18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.

Specifications*:

Size: 16 AWG
Number of Conductors: 3
Conductor Strand: 26/30
Insulation Thickness: 0.762 mm / 0.030 inches
Outside Diameter: 8.306 mm / 0.327 inches
Weight: 0.072 lbs per ft
Current Amps: 13 (Green conductor for grounding only)

Color Code:
3 Conductors: Black, White, Green

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size16 AWG
# of Conductors3 Conductors
Conductor MaterialBare Copper
O.D. (Inches)0.327
Ampacity13
Jacket ColorWhite
