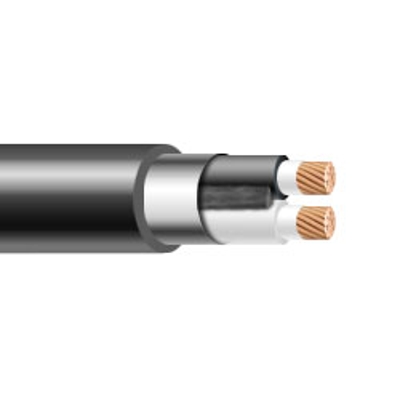

16/2 SJOOW Portable Cord 300V UL/CSA
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.
Color:
Black.
Applications:
SJOOW Flexible Portable Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery.
Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Water-resistant. UL Listed and CSA Certified for indoor and outdoor use. Sunlight-resistant. Temperature range: -40ºC to +90ºC
Standards:
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant
Construction:
Conductors:
18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.
Size: | 16 AWG |
Number of Conductors: | 2 |
Conductor Strand: | 26/30 |
Insulation Thickness: | 0.76 mm / 0.030 inches |
Outside Diameter: | 7.87 mm / 0.310 inches |
Weight: | 0.06 lbs per ft |
Current Amps: | 13 |
Color Code:
2 Conductors: Black, White
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Cable Type | SJOOW - 300V |
Wire Size | 16 AWG |
# of Conductors | 2 Conductors |
Conductor Material | Bare Copper |
Stranded or Solid | Stranded |
O.D. (Inches) | 0.31 |
Ampacity | 13 |
Voltage | 300V |
Temp. Rating | -40°C ~ 90°C |
Insulation Material | EPDM Rubber |
Flexibility | High Flexibility |
Indoor/Outdoor Use | Indoor, Outdoor |
Shielded | No |
Standards | UL Listed, CSA Certified, RoHS Compliant, MSHA Approved |
Features | Weather Resistant, Water Resistant, Oil Resistant |
Color Code | Black, White |
