$2.46 /ft.

In Stock

SOOW Flexible Portable Cord. Cut to length - sold by the Foot.

Min: 10 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

16/16 SOOW Portable Cord 600V UL/CSA

SKU
SOO16s16-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1 ft. to maximum 1000 ft. Please call for longer put ups.

Color:
Black

Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery

Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC

Standards:
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant

Construction:
Conductors:
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.

Specifications*:

Size: 16 AWG
Number of Conductors: 16
Conductor Strand: 26/30
Insulation Thickness: 0.030 inches
Outside Diameter: 0.780 inches
Weight: 0.380 lbs per ft
Current Amps: 5

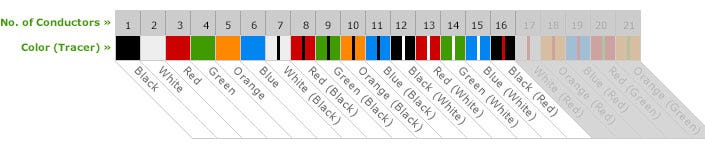

Color Code Chart:
SOOW color code

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeSOOW - 600V
Wire Size16 AWG
# of Conductors16 Conductors
Conductor MaterialBare Copper
Stranded or SolidStranded
O.D. (Inches)0.74
Ampacity5
Voltage600V
Temp. Rating-40°C ~ 90°C
Insulation MaterialEPDM Rubber
Jacket MaterialCPE - Chlorinated Polyethylene
FlexibilityHigh Flexibility
Indoor/Outdoor UseIndoor, Outdoor
ShieldedNo
StandardsUL Listed, CSA Certified, RoHS Compliant, MSHA Approved
FeaturesWeather Resistant, Water Resistant, Oil Resistant
