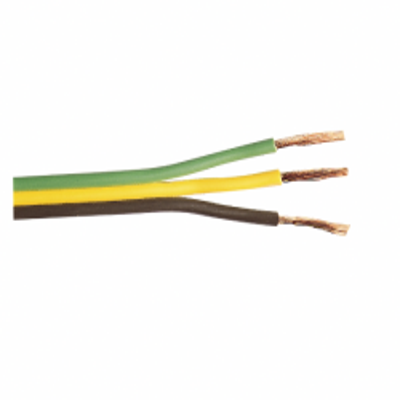

14 Gauge 3 Conductor Bonded Parallel Wire





Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
100 ft.
500 ft.
Add a length

 Free Shipping on all orders over $1000

14 Gauge 3 Conductor Bonded Parallel Wire

SKU
BP14s3

Product Details

Learn everything you want to know about this product to make an informed purchase

14 Gauge 3 Conductor Bonded Parallel Wire

Applications:
Multiple primary wires parallel bonded with color-coding for identification purposes. Especially ideal for use in RVs, marine, and utility trailer applications. Built to stay together under the toughest operating conditions yet easy to separate at the end of a run for final terminal connection. All-copper stranded core is highly conductive maximizing current transfer while remaining flexible for easy installation. Customized printing is available to best meet individual needs.

Standards: SAE J1128, SAE J378

Color Code:
3 Conductors: Brown/Yellow/Green

Specifications*:

Size: 14 Gauge
Conductors: 3
Number of Strands: 19/27
Voltage: 60 Volts or Less
Temp: : Rated –30°C (–22°F) to 80°C (176°F)
Outside Diameter: 0.117 x 0.351 inches
Weight: 5 lbs. per 100ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size14 AWG
# of Conductors3 Conductors
O.D. (Inches)0.117 x 0.351 in.
