Product Details

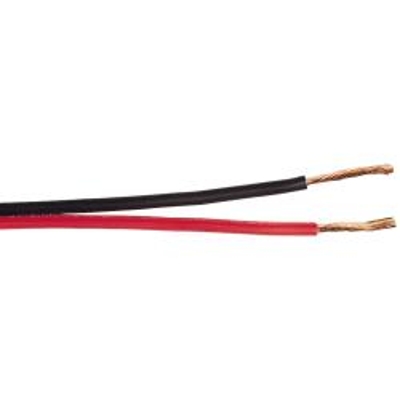

Learn everything you want to know about this product to make an informed purchase14 Gauge 2 Conductor Bonded Parallel Wire
Applications:
Multiple primary wires parallel bonded with color-coding for identification purposes. Especially ideal for use in RVs, marine, and utility trailer applications. Built to stay together under the toughest operating conditions yet easy to separate at the end of a run for final terminal connection. All-copper stranded core is highly conductive maximizing current transfer while remaining flexible for easy installation. Customized printing is available to best meet individual needs.
Standards: SAE J1128, SAE J378
Color Code:
2 Conductors: Black & Red
Specifications*:
Size: 14 Gauge
Conductors: 2
Number of Strands: 19/27
Voltage: 60 Volts or Less
Temp: : Rated –30°C (–22°F) to 80°C (176°F)
Outside Diameter: 0.117 x 0.234 inches
Weight: 4 lbs per 100ft
*Data provided on this page is subject to change based on different manufacturers variances.
| Wire Size | 14 AWG |
|---|---|
| # of Conductors | 2 Conductors |
| O.D. (Inches) | 0.117 x 0.234 in. |
