14 AWG, Type MTW Wire, 41 Strand, 250', 500' or 1000' Spool

SKU
MTW14

Product Details

Learn everything you want to know about this product to make an informed purchase

***STRIPED COLORS ARE NON-STOCK ITEMS & MAY TAKE 4-5 WEEKS TO SHIP***

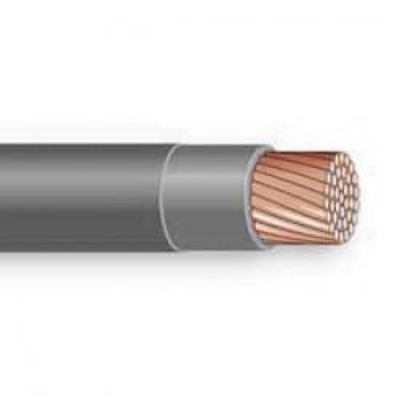

14 AWG MTW Stranded Wire, 600V. 250ft or 500ft Spool.

Applications:
Type conductors are primarily used in control cabinets, in machine tool applications and appliance wiring applications. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Bare Copper Stranding:
E315270 14 AWG (UL) MTW OR THHW OR BC-5W2 OR AWM 1011/1015/1230/1335 600V OR 1032/10269 1000V, VW-1---240954 CSA TEW 600V OR AWM 1 A/B 105C 1000V FT-1---SAE J1128 TYPE GPT

Specifications*:

Size: 14 AWG
Number of Strands: 19 or 41
Temp: 105°C
Insulation Thickness: 0.030 inches
Outside Diameter: 0.132 inches
Voltage: 600V

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeMTW - Machine Tool Wire
Wire Size14 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
O.D. (Inches)0.132
Insulation MaterialPVC - Polyvinyl Chloride
Direct BurialNo
