$0.62 /ft.

In Stock

Diesel Locomotive Cable. Cut to length - sold by the Foot.

Min: 50 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

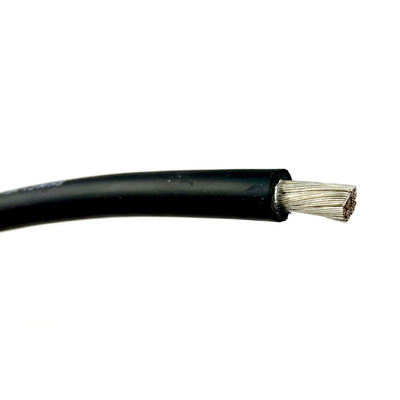

14 AWG Diesel Locomotive Cable 2KV

SKU
DLC14-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
DLO provides maximum performance. Tough enough to withstand daily abuse, temperature extremes and high-stress industrial environments. Diesel electric locomotives. For applications where flexible power leads must be installed in conduit or raceway. Motor leads.

Features:
90ºC temperature rating. Excellent impact and abrasion resistance. Resists oils, acids, alkalies, heat and flame. Flexible tinned copper stranding

Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.

Standards:
UL Listed
Accepted by MSHA for listing as flameresistant
CSA R90
RoHS Compliant

Construction:
Conductor:
Stranded tinned annealed bare copper per AAR 589
Insulation:
Premium grade 90ºC EPDM

Specifications*:

Size: 14 AWG
Conductor Strand: 19/27
Insulation Thickness: 0.047 inches
Jacket Thickness: 0.51 mm / 0.020 inches
Outside Diameter: 0.20 inches
Weight: 0.025 lbs per ft
Allowable Ampacity:  35 Amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size14 AWG
# of Conductors1 Conductor
O.D. (Inches)0.2
Ampacity 35
