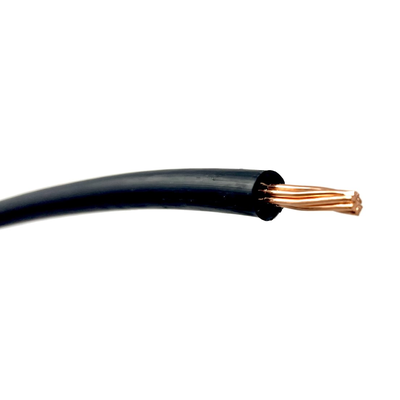

14 AWG Cathodic Protection Cable, 7 STR, HMWPE, 500ft or 1000ft Spool

14 AWG Cathodic Protection Cable, 7 STR, HMWPE, 500ft or 1000ft Spool

Applications:
Cathodic Protection Cable is used for direct earth burial DC feeder cable for cathodic protection systems, storage tanks, pipelines, wells, ocean vessels, and metallic structures buried or water submerged.

Standards:
2.1 ASTM B-1, B-3, B-8, B-33, B-172,and B-173 for soft drawn annealed copper conductors 2.2 ASTM D-1248, NEMA WC-5, ICEA S-61-402 for High Molecular Weight Polyethylene (HMWPE). 2.3 UL 83, UL 1581 and UL 2556

Conductors:
Single stranded copper conductors per UL83 and ASTM requirements.

Insulation:
The conductor shall be insulated with black, sunlight resistant polyethylene complying with the physical and electrical properties per ASTM D-1248, Type I, Class A thru D, Cat 4, and Grades E4-E5. Types II, III, and IV are available on request. The insulation shall be concentrically applied and the minimum at any point shall not be less than 90% of the specified average thickness. Rated at 75°C, 600 volts.

Specifications*:

Size: 14 AWG
Number of Strands: 7
Voltage: 600V
Temp: 75°C
Insulation Thickness: 0.110 inches
Outside Diameter: 0.29inches
Weight: 0.038 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.
