14/7 Trailer Cable Wire

SKU
TRC14s7

Product Details

Learn everything you want to know about this product to make an informed purchase

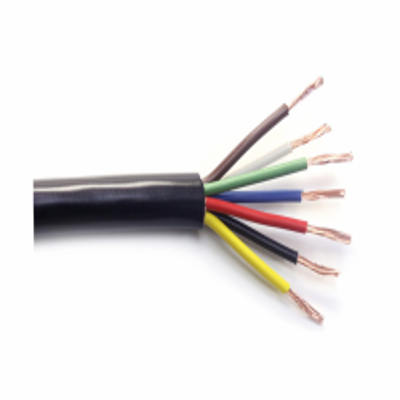

14 Gauge 7 Conductor Trailer Cable Wire, 50ft, 100ft, 500ft Spool

Applications:
General-purpose primary wires covered in a high quality, PVC jacket. Especially designed for reliability as an integral part of the brake and safety system. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128

Color Code:
7 Conductors: Red/Green/Brown/White/Black/Yellow/Blue

Specifications*:

Size: 14 Gauge
Conductors: 7
Number of Strands: 19/27
Jacket Color: Black
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated –55°C (–67°F) to 80°C (176°F)
Outside Diameter: 0.500
Length: 100 ft
Weight: 0.350 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeTrailer Cable
Wire Size14 AWG
# of Conductors7 Conductors
O.D. (Inches)0.5
