14/6-12/1 Trailer Cable Wire

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
50 ft.
100 ft.
500 ft.
Add a length

 Free Shipping on all orders over $1000

14/6-12/1 Gauge Trailer Cable Wire

SKU
TRC1412s1

Product Details

Learn everything you want to know about this product to make an informed purchase

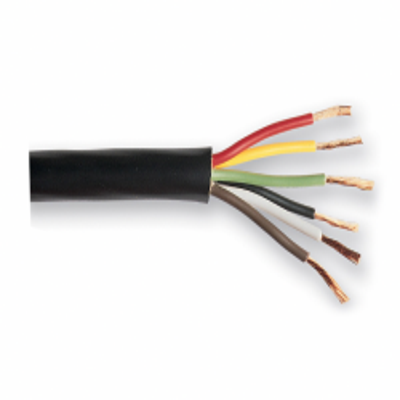

14 Gauge 6 Conductor + 12 Gauge 1 Conductor Trailer Cable Wire

Applications:
General-purpose primary wires covered in a high quality, PVC jacket. Especially designed for reliability as an integral part of the brake and safety system. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128

Color Code:
7 Conductors: White/Brown/Green/Red/Yellow/Black/Blue

Specifications*:

Size: 14 Gauge + 12 Gauge
Total Conductors: 7
Number of Strands: 19/25 + 19/23
Jacket Color: Black
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated –55°C (–67°F) to 80°C (176°F)
Outside Diameter: 0.600
Length: 100 ft
Weight: 0.310 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeTrailer Cable
Wire Size14 AWG
# of Conductors7 Conductors
O.D. (Inches)0.6
