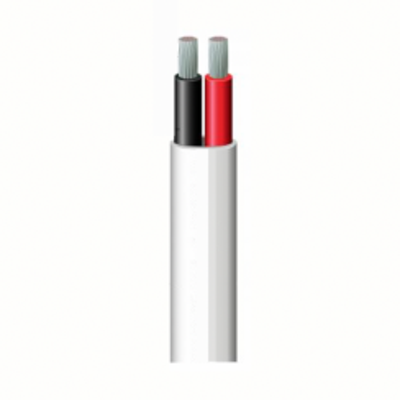

14/2 Duplex Marine Cable, Tinned Copper, UL 1426

SKU MGBC14s2

$

0.460600

0.460600

/ft
How will you purchase this wire?
0.460600 0.460600
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

100 500 1000 2500
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

14/2 Duplex Marine Cable, Tinned Copper, UL 1426

Grouped product items
Color Length (ft.)
Black/Red Length 100 ft.
$46.06
Black/Red Length 500 ft.
$230.30
Black/Red Length 1000 ft.
$460.60
Black/Red Length 2500 ft.
$1,151.50
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    14 AWG

  • # of Conductors

    2 Conductors

  • O.D. (Inches)

    0.221 x 0.362 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Marine Grade, 14/2 Duplex Marine Cable (Boat Cable), Tinned Copper Stranding, UL 1426

Applications:
UL Listed, multi-conductor tinned wire with white jacket is ideal for use in the high corrosive environment of marine applications. Special electro-tinned, copper strands also increase protection against corrosion for recreational vehicles, automotive, trucks, and trailers. Tinned copper stranding is extremely flexible for easy routing through marine applications and easier to solder than bare copper. Flame retardant, PVC insulation is highly resistant to water, oil, grease, gasoline, and other damaging solvents. High voltage tolerance of up to 600 volts adds to versatility to its use in multiple marine and other suitable applications.

Standards: Meets DOT and Coast Guard specs for electrical systems

Color Code:
2 Conductors: Black/White or Black/Red or Red/Yellow

Specifications*:

Size: 14 Gauge
Conductors: 2
Number of Strands: 41/30
Jacket Color: White
Jacket Material: Polyvinylchloride (PVC)
Voltage: 600Volts
Temp: Rated at 105°C (221°F) dry and 75°C (167°F) wet
Outside Diameter: 0.221 x 0.362 inches
Weight: 0.061 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.
