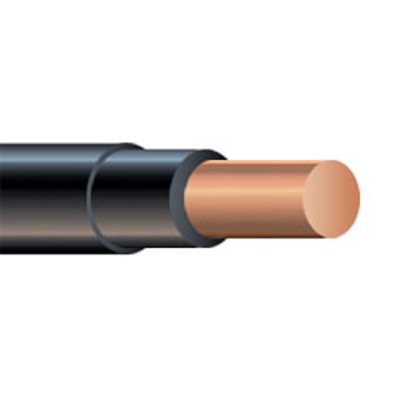

12 AWG Solid Tracer Wire, PE-30 Insulation

SKU
TCRW12SOL

Product Details

Learn everything you want to know about this product to make an informed purchase

12 AWG Solid Tracer/Locating/Pet Fence Wire, PE Insulation, 500ft Spool

Applications:
TRACER/LOCATOR WIRE insulated with high molecular weight polyethylene (HMWPE) specifically for use in direct burial applications. HMWPE is a rugged and durable material considered excellent for moisture and abrasion resistance. Linear low density (LLDPE) is standard. High density (HDPE) is available upon request. The tracer wire’s purpose of is to carry an electronic signal for use in locating underground non-metallic pipe. This product is manufactured according to Underwriters Laboratory constructions in both 30 volt and 600 volt versions suitable for use at a maximum continuous operating temperature of 75 degrees C in wet and dry locations.

Known As:
Tracer Wire, Locating Wire, Dog Fence Wire, Direct Burial Wire

Conductor:
Solid Copper Conductor

Insulation:
Polyethylene (HMWPE)

Standards:
2.1 ASTM B-1, B-3, and B-8 for copper conductors.
2.2 ASTM D-1248 for Polyethylene Extrusion Materials, ICEA S-70-547 Weatherproof Resistant Polyethylene Conductors, ICEA S-61-402/NEMA WC5 Thermoplastic Insulated Wire&Cable, ICEA S-95-658/NEMA WC70 Non-Shielded 0 – 2kv Cables. 2.3 UL 1581 Standard for Electrical Wires, Cables, and Flexible Cords.

Specifications*:

Size: 12 AWG
Stranding: Solid
Insulation Thickness (Conductor):0.030 inches
Outside Diameter: 0.14 inches
Voltage: 30V - (600V available upon request)
Weigth: 0.027 lbs per ft.

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeTracer Wire
Wire Size12 AWG
Conductor MaterialBare Copper
Stranded or Solid Solid
O.D. (Inches)0.14
Voltage30V
Insulation MaterialHMWPE - Polyethylene
Direct BurialYes
StandardsRoHS Compliant
