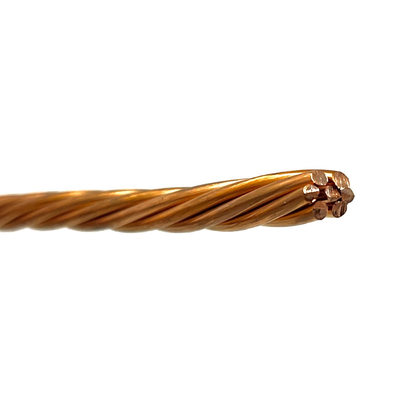

12 AWG Soft Drawn Stranded Bare Copper. 500ft or 1000ft Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

12 AWG Soft Drawn, Stranded, Bare Copper Wire, 500ft or 1000ft Spool

SKU
BC12STR

Product Details

Learn everything you want to know about this product to make an informed purchase

12 AWG Soft Drawn Stranded Bare Copper. 500ft or 1000ft Spool

Applications:
Stranded soft drawn bare copper is used for grounding.

Insulation:
Uninsulated

Jacket:
Unjacketed

Standards:
ASTM B-8=Concentric lay, Class B or Class C

Specifications*:

Size: 12 AWG
Number of Strands: 7
Outside Diameter:  0.092 inches
Weight: 0.020 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeBare Copper
Wire Size12 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or SolidStranded
O.D. (Inches)0.092
