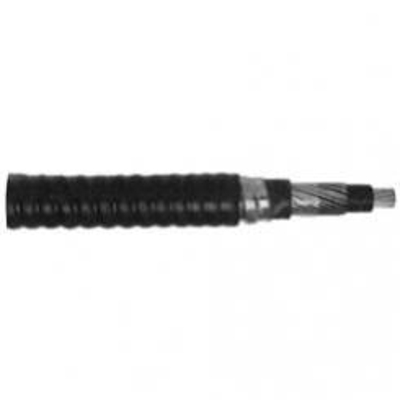

12-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V

SKU TEK124C

$

4.770000

4.770000

/ft
How will you purchase this wire?
4.770000 4.770000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

12-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V

Color Length (ft.) Price
Black

Length (ft.)

$4.77
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$2,385.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    12 AWG

  • # of Conductors

    4 Conductors w/ Ground

  • O.D. (Inches)

    0.84

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

12-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V
XLP insulation
Inner and outer PVC jackets

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 2500'. Please call for longer put ups.

Color:
Black

Applications:
For exposed or concealed wiring in wet or dry locations. For use in ventilated, non-ventilated and ladder type cable troughs and ventilated flexible cableway in wet or dry locations. For direct earth burial. Typical applications are for power, lighting and control circuits in: pulp and paper mills, steel mills, food processing plants, commercial centers, mines, generating stations, refineries, industrial plants and chemical plants.

Conductor:
Class B stranded, bare, soft copper

Insulation:
Cross-Linked Polyethylene (XLP)

Inner Jacket:
Polyvinyl Chloride (PVC) Black

Outer Jacket:
Polyvinyl chloride (PVC) -40°C black polyvinyl chloride PVC outer jacket, which is water, chemical, sunlight and abrasion resistant

Grounding Conductor:
14 AWG Bare stranded soft drawn grounding conductor


Armor:
Interlocked Aluminum tape armor


Temperature:
 -40°C to 90°C

Voltage:
 600V


Specifications*:

Size: 12 AWG
Number of Conductors: 4
Ground Wire Size: 14 AWG
Approx Diameter Inner Jacket: 0.530 inches
Approx Armor Diameter: 0.736 inches
Approx Diameter Outer Jacket: 0.840 inches
Net Weight: 0.308 lbs per ft


*Data provided on this page is subject to change based on different manufacturers variances.
