12 Gauge 4 Conductor Trailer Cable Wire

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
100 ft.
Add a length

 Free Shipping on all orders over $1000

12/4 Trailer Cable Wire

SKU
TRC12s4

Product Details

Learn everything you want to know about this product to make an informed purchase

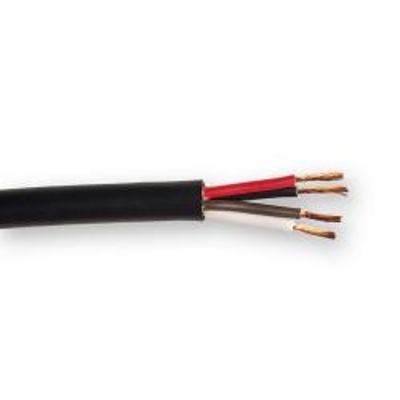

12 Gauge 4 Conductor Trailer Cable Wire, 100ft Spool

Applications:
General-purpose primary wires covered in a high quality, PVC jacket. Especially designed for reliability as an integral part of the brake and safety system. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128

Color Code:
4 Conductors: Black/Red/Brown/White

Specifications*:

Size: 12 Gauge
Conductors: 4
Number of Strands: 19/25
Jacket Color: Black
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated –55°C (–67°F) to 80°C (176°F)
Outside Diameter: 0.465
Length: 100 ft
Weight: 0.020 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeTrailer Cable
Wire Size12 AWG
# of Conductors4 Conductors
O.D. (Inches)0.465
