12-3C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V. Cut to length - sold by the Foot.

Min: 75 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

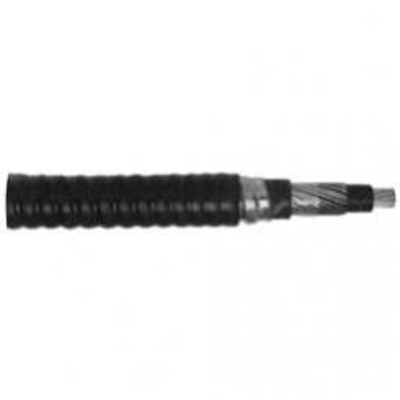

12-3C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V

SKU
TEK123C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

12-3C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V
XLP insulation
Inner and outer PVC jackets


Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 2500'. Please call for longer put ups.

Color:
Black

Applications:
Teck 90 is for use in power, control and lighting circuits at industrial and chemical plants, pulp and paper mills, steel mills, mines, power generating facilities, food processing plants and commercial centers. Teck 90 is suitable for installation in wet or dry locations in troughs, trays and in direct burial applications. Teck 90 is for applications up to 600 volts and temperatures from -40°C to +90°C.

Conductor:
Class B stranded, bare, soft copper

Insulation:
Cross-Linked Polyethylene (XLP)

Inner Jacket:
Polyvinyl Chloride (PVC) Black

Outer Jacket:
Polyvinyl chloride (PVC) -40°C black polyvinyl chloride PVC outer jacket, which is water, chemical, sunlight and abrasion resistant

Grounding Conductor:
14 AWG  Bare stranded soft drawn grounding conductor

Armor:
Interlocked Aluminum Tape Armor

Temperature:
 -40°C to 90°C

Voltage:
 600V


Specifications*:

Size: 12 AWG
Number of Conductors: 3
Ground Wire Size: 14 AWG
Approx Diameter Inner Jacket: 0.440 inches
Approx Armor Diameter: 0.640 inches
Approx Diameter Outer Jacket: 0.750 inches
Net Weight: 0.256 lbs per ft


*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size12 AWG
# of Conductors3 Conductors w/ Ground
O.D. (Inches)0.75
