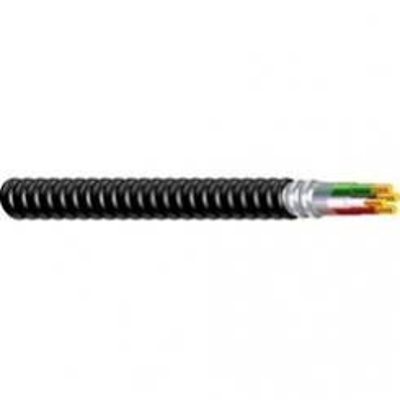

12/3C Type MC-HL Aluminum Armored Cable w/ PVC Jacket

SKU
MCHL123C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

12/3C Type MC-HL Aluminum Armored Cable w/ PVC Jacket - 3#16 Ground Wires

Applications:
Control and lighting circuits in manufacturing and processing plants, feeders in industrial and commercial distribution systems. May be directly buried or installed in cable tray or raceway.

Conductor:
Class B stranded, bare, annealed copper per ASTM B-3 and B-8

Insulation:
Cross-Linked Polyethylene (XLP) meeting the requirements of ICEA S-95-658 (NEMA WC70) and Type XHHW requirements of UL, color coding is Method 1, Table E-2

Assembly:
The insulated conductors and a single, uninsulated UL ground wire(s) are cabled with fillers to make round

Armor:
An impervious, corrugated continuous seam-welded aluminum alloy sheath in accordance with UL 1569. Armor is pressure-tested and meets the grounding requirements of NEC Article 250

Overall Jacket:
Black, sunlight-resistant Polyvinyl Chloride (PVC)

Ampacity:
Based on not more than three conductors in raceway or cable or earth and an ambient temperature of 30°C per NEC table 310.16. All multiconductor values have been derated per 2008 NEC Table 310.15(B)(2)(a) – TEMPERATURE: 90

Standards:
Cables are UL listed for cable tray use and meet the IEEE 1202 (70,000 Btu/hr) flame test. Individual conductors and completed cables are tested in accordance with UL 2225 requirements for Type MC-HL cables

Specifications*:

Size: 12 AWG
Conductor: 3 Conductor
Ground Wires: 3 #16AWG
Outside Diameter: 0.680 inches
Ampere Rating: 30
Weight: 0.242 lbs per ft.



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size12 AWG
O.D. (Inches)0.68
Ampacity30
