12/3C Bus Drop Cable

SKU BUS12s3C

$

2.030000

2.030000

/ft
How will you purchase this wire?
2.030000 2.030000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

12/3C Bus Drop Cable

Color Length (ft.) Price
Black

Length (ft.)

$2.03
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$1,015.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Jacket Color

    Black

  • Cable Type

    Bus Drop Cable

  • Wire Size

    30 AWG

  • # of Conductors

    3 Conductors w/ 3 Grounds

  • Conductor Material

    Bare Copper

  • O.D. (Inches)

    0.42

  • Ampacity

    25

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

2000V, 75°C (-20°C), Resistant to oils, lubricants, acids, alkalies, ozone, water and abrasion.

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Gray

Applications:
Bus Drop Cable is intended for use in indoor or outdoor applications for connection of stationary or portable equipment to facilitate relocation of equipment. Rated for indoor and outdoor use in wet or dry locations.

Compliances:
- OSHA acceptable
- RoHS Compliant
- UL Listed
- -20°C to 75°C - #14-#8
- -20°C to 60°C - #6-#2

Conductor:
Fully annealed stranded bare copper per ASTM B-8 or ASTM B-172.

Insulation:
Premium grade PVC

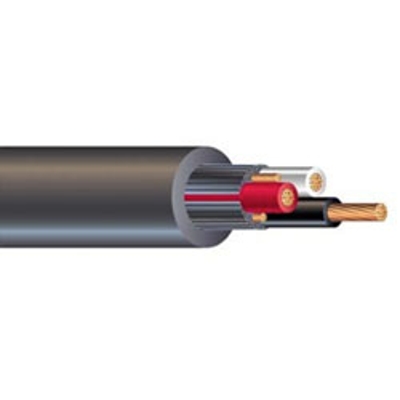

Construction:
The conductors are insulated with Premium-grade, PVC insulation with a clear nylon jacket and are colored black, white, and red. The conductors and ground wires along with paper or polypropylene fillers are cabled for flexibility then wrapped with a mylar separator to aid strippability. The cable is covered with a gray PVC jacket.

Specifications*:

Size: 12 AWG
Number of Conductors: 3
Conductor Strand: 19
CGround Wires: 3 x 16
Nominal Insulation Thickness: 0.030 inches
Nominal Jacket Thickness: 0.045 inches
Outside Diameter: 0.420 inches
Ampacity: 25
Net Weight: 0.151 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
