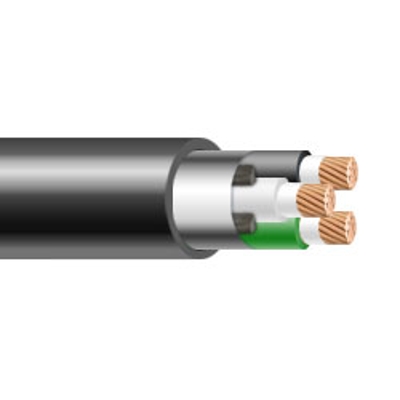

12/3 STO Flexible Portable Cord 600v UL/CSA
/ft.
/ft.
Product Details
Learn everything you want to know about this product to make an informed purchase Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put ups.
Applications:
STO Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.
Jacket:
Polyvinylchloride (PVC), Gray or Yellow. Temperature range: -20ºC to +60ºC. Voltage rating: 600 Volts.
Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone
Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)
Construction:
Conductors:
18 through 6 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.
Specifications*:
Size: 12 AWG
Number of Conductors: 3
Conductor Strand: 65/30
Insulation Thickness: 1.14 mm / 0.045 inches
Outside Diameter: 15.24 mm / 0.600 inches
Weight: 0.211 lbs per ft
Current Amps: 25 (Green conductor for grounding only)
Color Code:
3 Conductors: Black, White, Green
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Jacket Color | Black;Yellow;Gray |
| Wire Size | 12 AWG |
| # of Conductors | 3 Conductors |
| Conductor Material | Bare Copper |
| O.D. (Inches) | 0.6 |
| Ampacity | 25 |
