In Stock

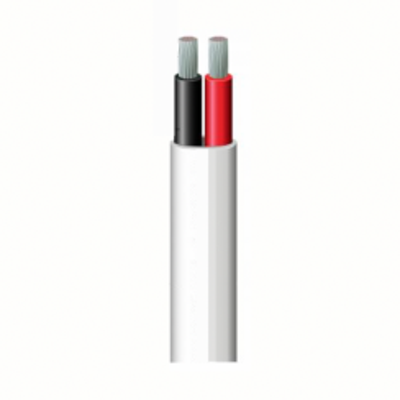

12/2 Duplex Marine Cable, Tinned Copper, UL 1426
Product Details
Learn everything you want to know about this product to make an informed purchaseMarine Grade, 12/2 Duplex Marine Cable (Boat Cable), Tinned Copper Stranding, UL 1426.
Applications:
UL Listed, multi-conductor tinned wire with white jacket is ideal for use in the high corrosive environment of marine applications. Special electro-tinned, copper strands also increase protection against corrosion for recreational vehicles, automotive, trucks, and trailers. Tinned copper stranding is extremely flexible for easy routing through marine applications and easier to solder than bare copper. Flame retardant, PVC insulation is highly resistant to water, oil, grease, gasoline, and other damaging solvents. High voltage tolerance of up to 600 volts adds to versatility to its use in multiple marine and other suitable applications.
Standards: Meets DOT and Coast Guard specs for electrical systems
Color Code:
2 Conductors: Black/White or Black/Red or Red/Yellow
Specifications*:
Size: 12 Gauge
Conductors: 2
Number of Strands: 65/30
Jacket Color: White
Jacket Material: Polyvinylchloride (PVC)
Voltage: 600Volts
Temp: Rated at 105°C (221°F) dry and 75°C (167°F) wet
Outside Diameter: 0.245 x 0.410 inches
Weight: 0.082 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 12 AWG |
# of Conductors | 2 Conductors |
O.D. (Inches) | 0.245 x 0.410 in. |
