$115.00

In Stock

THHN Stranded Building Wire. 500ft, 1000ft or 2500ft Spools.

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft. Spool
1500 ft. Spool
2500 ft. Spool
Add a length

 Free Shipping on all orders over $1000

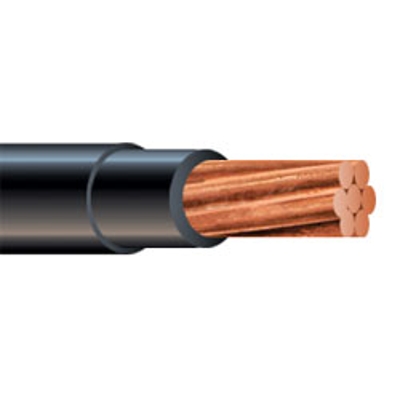

10 AWG THHN Stranded Wire, 500ft, 1000ft or 2500ft Spool

SKU
THN10

Product Details

Learn everything you want to know about this product to make an informed purchase

THHN Stranded Building Wire. 500 ft, 1000 ft or 2500 ft Spools.

To purchase a 100ft or 200ft coil, click here.

Applications:
Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). Type THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Also Known As:
10 Gauge Copper Wire, #10 AWG THWN, building wire, 10 gauge hook up wire, conduit wire, bathtub wire, lighting wire, nylon copper wire, construction cable, 10 gauge wire, #10 awg wire, 500' spool of 10 AWG Wire

Features:
Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG. All sizes are rated gasoline and oil-resistant II.

Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.

Standards:
Underwriters Laboratories Standards UL-83, UL-1063, UL-758
AWM Spec 1316, 1317, 1318, 1319, 1320, 1321
ASTM Stranding Class B3, B8, B787
Federal Specification A-A-59544
Canadian Standards Association C22.2 No. 75
NEMA WC70/ICEA S-95-658
Institute of Electrical and Electronics Engineers

Construction:
Conductors:
Solid, uncoated copper conductors per ASTM-B3
Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
Insulation:
Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-8

Specifications*:

Size: 10 AWG
Number of Strands: 19
Cross Section Area (mm2): 5.26
PVC Insulation Thickness (Conductor): 0.510 mm / 0.020 inches
Nylon Jacket Thickness: 0.100 mm / 0.004 inches
Outside Diameter: 4.07 mm / 0.160 inches
10 AWG THHN Ampacity: 30 Amps at 60ºC / 30 Amps at 75ºC / 30 Amps at 90ºC

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeTHHN/THWN-2
Wire Size10 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or SolidStranded
Number of Strands19
O.D. (Inches)0.16
Ampacity30
Voltage600V
Temp. Rating90°C
Insulation MaterialPVC - Polyvinyl Chloride
Jacket MaterialNylon
Location UseWet, Dry
Indoor/Outdoor UseIndoor, Outdoor
StandardsUL Listed, CSA Certified
FeaturesWater Resistant, Oil & Gas Resistant, Heat Resistant
