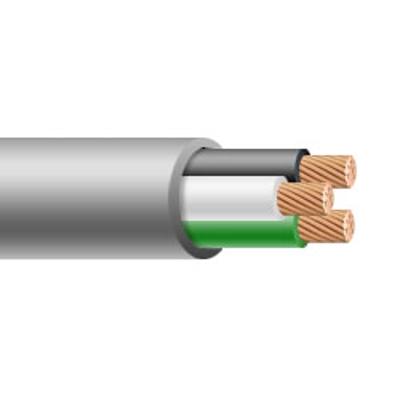

10/3 SJTO Portable Cord 300v UL/CSA

SKU SJT10s3
How will you purchase this wire?
1.800000 1.800000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

10/3 SJTO Portable Cord 300v UL/CSA

Color Length (ft.) Price
Gray

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
Gray Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Jacket Color

    Yellow;Gray

  • Wire Size

    10 AWG

  • # of Conductors

    3 Conductors

  • Conductor Material

    Bare Copper

  • O.D. (Inches)

    0.58

  • Ampacity

    30

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 20' to maximum 1500'. Please call for longer put ups.

Color:
Yellow

Applications:
SJTO Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.

Jacket:
Polyvinylchloride (PVC), Gray or Yellow. Temperature range: -20ºC to +60ºC. Voltage rating: 300 Volts.

Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone

Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)

Construction:
Conductors:
18 through 6 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.

Specifications*:

Size: 10 AWG
Number of Conductors: 3
Conductor Strand: 104/30
Insulation Thickness: 1.14 mm / 0.045 inches
Outside Diameter: 14.73 mm / 0.580 inches
Weight: 0.231 lbs per ft
Current Amps: 30 (Green conductor for grounding only)

Color Code:
3 Conductors: Black, White, Green

*Data provided on this page is subject to change based on different manufacturers variances.
