SOOW Flexible Portable Cord. Cut to length - sold by the Foot.
10/20 SOOW Portable Cord 600V UL/CSA
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1 ft. to maximum 13 ft. Please call for longer put ups.
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Premium-grade, color-coded 90ºC EPDM.
Size: 10 AWG
Number of Conductors: 20
Conductor Strand: 104/30
Insulation Thickness: 0.045 inches
Outside Diameter: 1.365 inches
Weight: 1.445 lbs per ft
Current Amps: 12.5

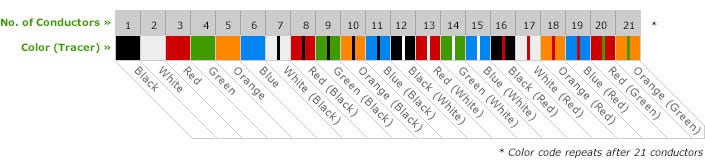

Color Code Chart:
*Data provided on this page is subject to change based on different manufacturers variances.
|Cable Type||SOOW - 600V|
|Wire Size||10 AWG|
|# of Conductors||20 Conductors|
|Conductor Material||Bare Copper|
|Stranded or Solid||Stranded|
|Temp. Rating||-40°C ~ 90°C|
|Insulation Material||EPDM Rubber|
|Jacket Material||CPE - Chlorinated Polyethylene|
|Indoor/Outdoor Use||Indoor, Outdoor|
|Standards||UL Listed, CSA Certified, RoHS Compliant, MSHA Approved|
|Features||Weather Resistant, Water Resistant, Oil Resistant|
