In Stock

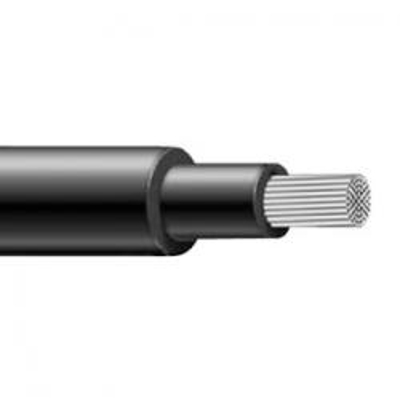

Diesel Locomotive Cable. Cut to length - sold by the Foot.
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.
Color:
Black
Applications:
DLO provides maximum performance. Tough enough to withstand daily abuse, temperature extremes and high-stress industrial environments. Diesel electric locomotives. For applications where flexible power leads must be installed in conduit or raceway. Motor leads.
Features:
90ºC temperature rating. Excellent impact and abrasion resistance. Resists oils, acids, alkalies, heat and flame. Flexible tinned copper stranding
Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.
Standards:
UL Listed
Accepted by MSHA for listing as flameresistant
CSA R90
RoHS Compliant
Construction:
Conductor:
10 AWG through 777.7 kcmil stranded tinned annealed bare copper per AAR 589
Insulation:
Premium grade 90ºC EPDM
Specifications*:
Size: 1 AWG
Conductor Strand: 224/24
Insulation Thickness: 2.03 mm / 0.080 inches
Jacket Thickness: 1.14 mm / 0.045 inches
Outside Diameter: 16.51 mm / 0.65 inches
Weight: 0.430 lbs per ft
Allowable Ampacity: 220 Amps
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 1 AWG |
# of Conductors | 1 Conductor |
O.D. (Inches) | 0.65 |
Ampacity | 220 |
