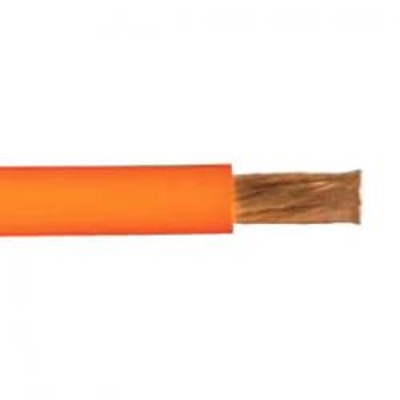

1/0 Welding Cable Class M
Class M welding cable offers flexibility and durability superior to class K welding cable.
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.
Also Known As:
temporary power, flexible cable, 600 volt cable, copper cable, welders cable, hurricane cable, etc.
Excellent flexibility to last longer in flex applications. Abrasion-resistant. Resists oils and solvents. Rated -50ºC for use in cold environments. Weather-resistant. Sunlight-resistant. Ozone-resistant. Safety-colored for high visibility. Assured longer service life, saving money in replacement costs, maintenance cost and downtime.
Temperature range: -50ºC to +90ºC
Meets UL Vertical Flame Test per UL 854
Fully annealed stranded bare copper per ASTM B-172 Class M
Conductor Strand: 2640/34
Outside Diameter: 14.61 mm / 0.575 inches
Weight: 0.425lbs per ft
Current Amps: 260 (For 600 Volt In-Line Applications)
*Data provided on this page is subject to change based on different manufacturers variances.
