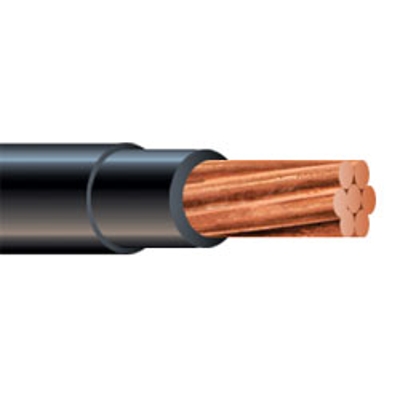

1/0 AWG THHN/THWN-2 Copper Building Wire

#1/0 THHN/THWN-2 Wire

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 7500'. Please call for longer put ups.

Applications:
Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). Type THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Also Known As:
1/0 Copper Wire, 1/0 THWN, 1/0 Building Wire, Hook Up Wire, Conduit Wire, Lighting Wire, Nylon Copper Wire, Construction Cable, 1 Aught Copper Wire, etc...

Features:
Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG. All sizes are rated gasoline and oil-resistant II.

Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.

Standards:
Underwriters Laboratories Standards UL-83, UL-1063, UL-758
AWM Spec 1316, 1317, 1318, 1319, 1320, 1321
ASTM Stranding Class B3, B8, B787
Federal Specification A-A-59544
Canadian Standards Association C22.2 No. 75
NEMA WC70/ICEA S-95-658
Institute of Electrical and Electronics Engineers

Construction:
Conductors:
Solid, uncoated copper conductors per ASTM-B3
Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
Insulation:
Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-8

1/0 AWG THHN/THWN-2 Specifications*:

Size: 1/0
Number of Strands: 19
Cross Section Area (mm2): 53.5
PVC Insulation Thickness (Conductor): 1.270 mm / 0.050 inches
Nylon Jacket Thickness: 0.180 mm / 0.007 inches
Outside Diameter: 12.04 mm / 0.474 inches
Weight: 0.398 lbs per ft
Allowable Ampacity: 125 Amps at 60ºC / 150 Amps at 75ºC / 170 Amps at 90ºC

*Data provided on this page is subject to change based on different manufacturers variances.
