$20.13 /ft.

In Stock

1/0 3C Type P Power Cable, 600/1000V. Cut to length - sold by the Foot.

Min: 10 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

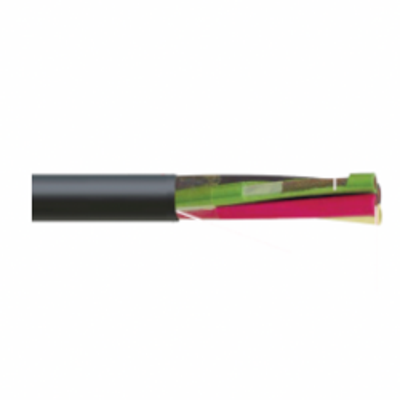

1/0 3C Type P Power Cable, 600/1000V


Product Details

Learn everything you want to know about this product to make an informed purchase

0.6/1kV Unarmored 110°C Gexol® Insulation Made in the USA

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put ups.

Designed and constructed for the demanding environments of offshore drilling and petroleum facilities located throughout the world.

Soft annealed flexible stranded tinned copper per IEEE 1580 Table 11.

Flame Retardant Cross-linked Polyolefin, meeting the requirements for Type P of IEEE 1580 and Type X110 of UL 1309/CSA C22.2 No. 245. Color Code: Black-White-Red-Green. Sizes 1/0 and Larger: Black with Phase ID Imprint.

Black, arctic grade, flame retardant, oil, abrasion, chemical and sunlight resistant thermosetting compound meeting UL 1309/CSA C22.2 No. 245 and IEEE 1580.

• American Bureau of Shipping (ABS)
• Transport Canada
• Det Norske Veritas (DNV)
• Lloyd's Register of Shipping (LRS)NVE 95/1696, FAL
• UL listed as Marine Shipboard Cable
• United States Coast Guard
• CSA listed as Marine Shipboard Cable

• High strand count conductors make this product extremely flexible, easier to install and more resistant to vibration than Type MC, IEC spec or commercial cables.
• Lower dielectric constant and higher insulation resistance reduces electrical losses.
• Excellent resistance to moisture produces stable electrical properties throughout the life of the cable.
• In fire conditions, non chlorinated flame retardant system produces less toxic and less corrosive gasses.
• Dual certified IEEE 1580 Type P and UL 1309/CSA C22.2 No. 245 Type X110.
• Highest ampacity ratings: ABS 100°C, DNV 95°C, LRS 95°C, Transport Canada 95°C
• Severe cold durability: exceeds CSA cold bend/cold impact (-40/-35° C)
• Flame retardant: IEC 60332-3 Category A and IEEE 1202


Size: 1/0
Number of Conductors: 3
Nominal Diameter: 1.326 inches
Inductive Reactance (Ohms/1000 ft.): 0.028
Voltage Drop at 110°C (Volts/Amp/1000ft.): 0.245
DC Resistance at 25°C ((Ohms/1000 ft.): 0.117
AC Resistance at 110°C (Ohms/1000 ft.): 0.156
Current AMPS: Free Air 110°C = 176, 100°C = 164, 95°C = 152
Net Weight: 1.448 lbs per ft

*Cable diameters shown as nominal are subject to a ±5% manufacturing tolerance.

More Information
Wire Size1/0 AWG
# of Conductors3 Conductors
Conductor MaterialTinned Copper
O.D. (Inches)1.326
Jacket ColorBlack
